HIGHLIGHTS

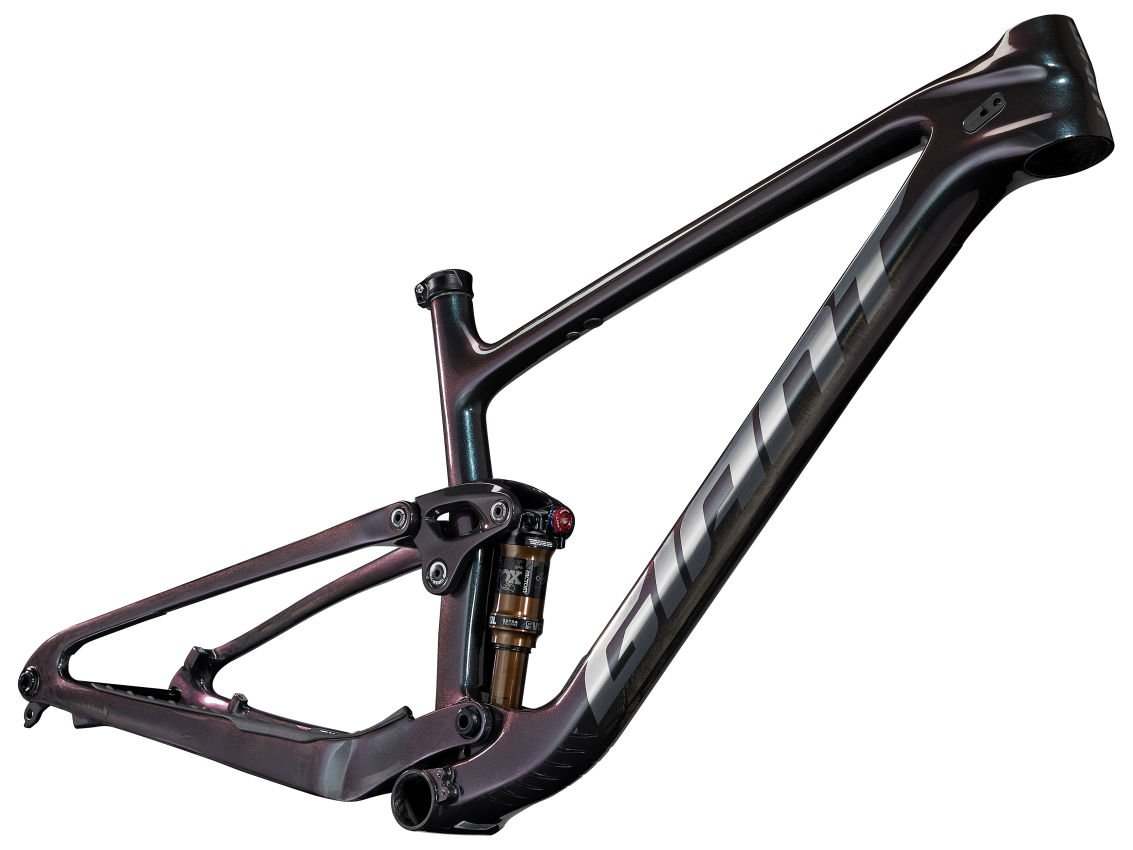

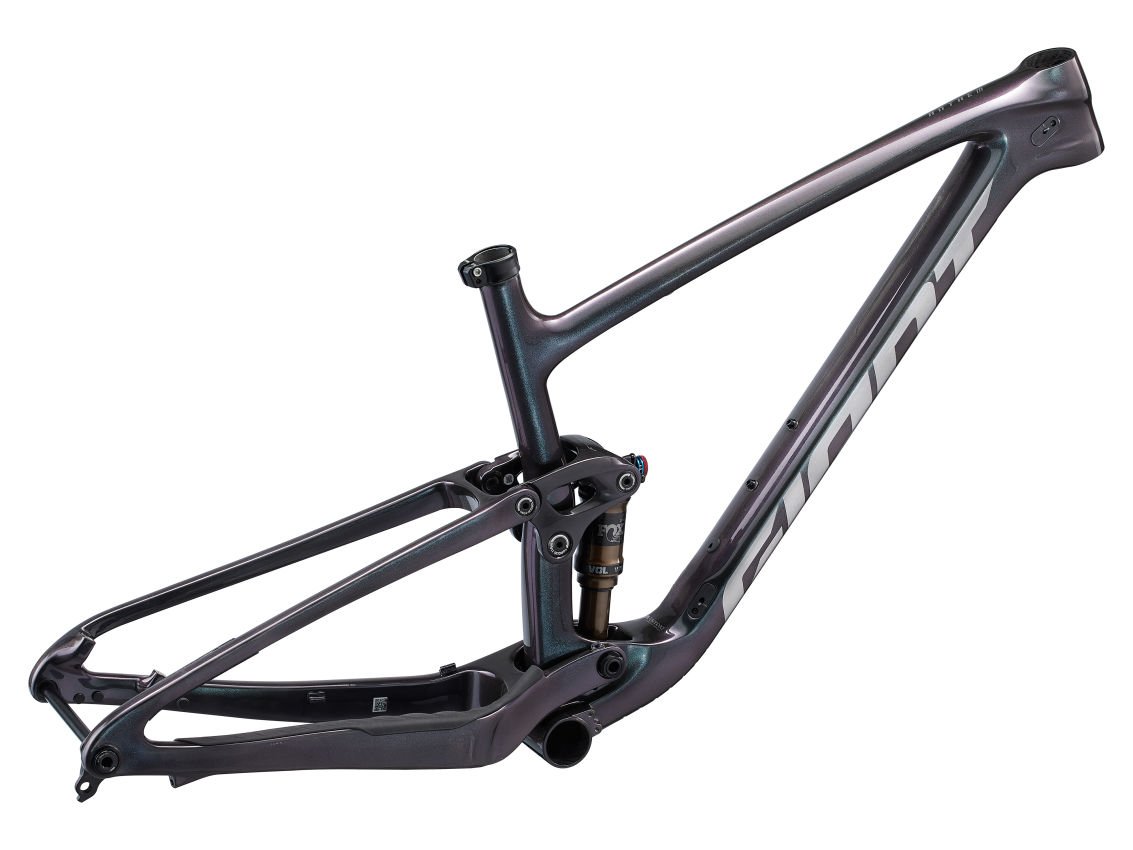

Engineered with a full composite frame, this 29er has 100mm of rear suspension travel. The linkage-driven, single-pivot FlexPoint Pro rear suspension makes room for shorter chainstays to improve climbing capabilities and overall agility. Other updates include new 29er-specific XC race geometry with a longer reach and a slacker headtube angle plus a new design for internal cable routing.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- S
- 5’4”
5’8”
-
- M
- 5’7” 5’11”
-
- L
- 5’10” 6’2”
-
- XL
- 6’2” 6’6”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 15.4 | 16.5 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 75.5° | 75.5° | 75.5° | 75.5° |
| C | TOP TUBE LENGTH (inch) | 22.5 | 23.8 | 24.6 | 25.7 |
| D | HEAD TUBE LENGTH (inch) | 3.5 | 3.7 | 4.1 | 4.5 |
| E | HEAD TUBE ANGLE | 67.5° | 67.5° | 67.5° | 67.5° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.3 | 4.3 | 4.3 | 4.3 |
| H | WHEELBASE (inch) | 44.4 | 45.6 | 46.6 | 47.7 |
| I | CHAIN STAY LENGTH (inch) | 17.1 | 17.1 | 17.1 | 17.1 |
| J | BOTTOM BRACKET DROP (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| K | STACK (inch) | 23.2 | 23.3 | 23.7 | 24.1 |
| L | REACH (inch) | 16.5 | 17.7 | 18.5 | 19.5 |
| M | STAND OVER HEIGHT (inch) | 29.3 | 29.5 | 30.6 | 31.5 |
| N | HANDLEBAR WIDTH (inch) | 29.9 | 29.9 | 29.9 | 29.9 |
| O | STEM LENGTH (inch) | 2.4 | 2.8 | 2.8 | 2.8 |
| P | CRANK LENGTH (inch) | 6.7 | 6.9 | 6.9 | 6.9 |
| Q | WHEEL SIZE | 29″ | 29″ | 29″ | 29″ |
