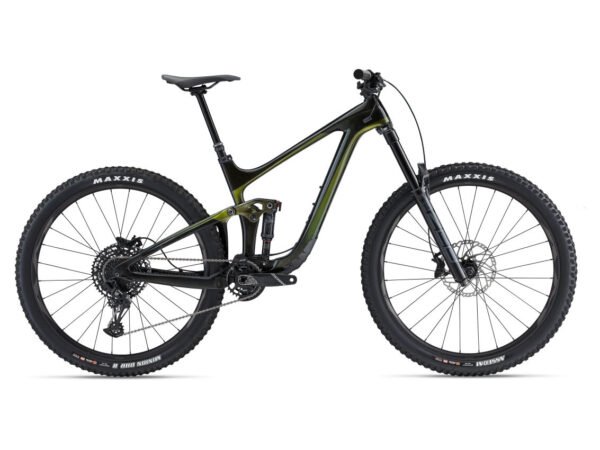

STAY COOL WHEN THE TRAIL GETS ROWDY. FROM BIG CLIMBS TO STEEP, ROCKY DESCENTS, THIS FULL-COMPOSITE RIPPER WAS DESIGNED WITH GIANT ENDURO PROS FOR HARD-CHARGING CONFIDENCE AND CONTROL.
KEY PERFORMANCE FACTORS
Race-bred suspension
Maestro rear suspension developed and tested under extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke and smoother feel, and the Advanced Forged Composite upper rocker arm adds stiffness while lowering overall frame weight.
Progressive enduro geometry
The purpose-built composite frameset helps you ride aggressive descents and rail corners with confidence. Enduro-optimized head and seattube angles, plus a 170mm fork with 44mm offset, produce confident front-end handling.
29er confidence and control
Larger 29-inch diameter wheels optimized to roll over rugged enduro terrain with improved balance and stability, giving you the momentum to crank up tough climbs and the confidence to fly on fast, technical descents.
HIGHLIGHTS
The geometry of the Advanced composite frame and swingarm was developed specifically around 29-inch wheels. That means shorter chainstays, a longer toptube, and just the right angles with the headtube (64.56 degrees) and seattube (76.36 degrees). We gave it an updated Maestro rear suspension system with 146mm of travel. The trunnion mount shock and Advanced Forged Composite rocker arm deliver an active, super plush feel on the trail.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- S
- 5’4”
5’8”
-
- M
- 5’7” 5’11”
-
- L
- 5’10” 6’2”
-
- XL
- 6’2” 6’6”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | SEAT TUBE LENGTH (inch) | 17 | 17 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 76.4° | 76.4° | 76.4° | 76.4° |
| C | TOP TUBE LENGTH (inch) | 22.6 | 23.7 | 25.2 | 26.2 |
| D | HEAD TUBE LENGTH (inch) | 3.9 | 3.9 | 4.3 | 4.7 |
| E | HEAD TUBE ANGLE | 64.6° | 64.6° | 64.6° | 64.6° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 5.2 | 5.2 | 5.2 | 5.2 |
| H | WHEELBASE (inch) | 46.9 | 48 | 49.7 | 50.7 |
| I | CHAIN STAY LENGTH (inch) | 17.3 | 17.3 | 17.3 | 17.3 |
| J | BOTTOM BRACKET DROP (inch) | 1.1 | 1.1 | 1.1 | 1.1 |
| K | STACK (inch) | 24.5 | 24.5 | 24.8 | 25.2 |
| L | REACH (inch) | 16.7 | 17.8 | 19.2 | 20.1 |
| M | STAND OVER HEIGHT (inch) | 29.8 | 29.9 | 30.7 | 31.7 |
| N | HANDLEBAR WIDTH (inch) | 31.5 | 31.5 | 31.5 | 31.5 |
| O | STEM LENGTH (inch) | 1.6 | 1.6 | 1.6 | 1.6 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 29″ | 29″ | 29″ | 29″ |
