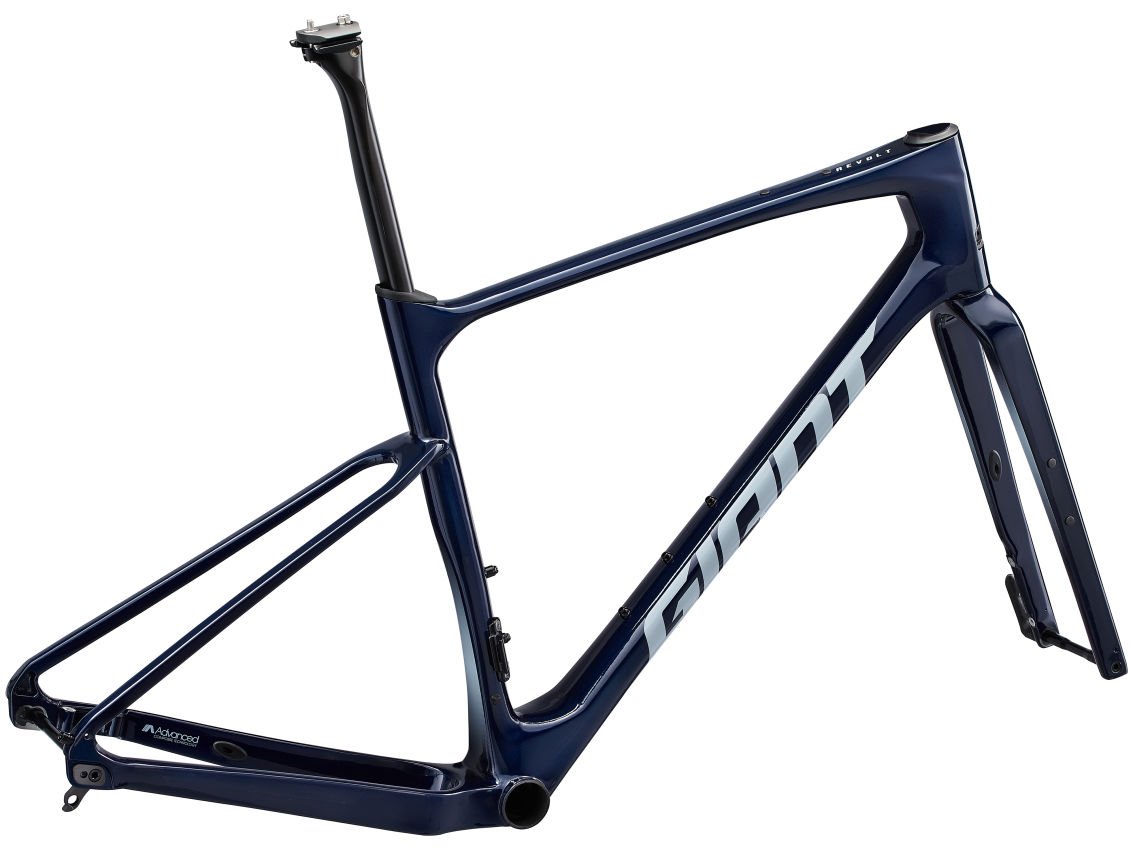

NOW LIGHTER, SMOOTHER AND MORE ADAPTABLE TO VARIABLE TERRAIN, THIS ALL-NEW, READY-FOR-ANYTHING GRAVEL FRAMESET COMBINES ULTRA-EFFICIENT PERFORMANCE WITH NEXT-LEVEL CONTROL.
KEY PERFORMANCE FACTORS
Lightweight efficiency
New Advanced composite frame and Advanced SL composite fork save a combined 125 grams compared to previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper headtube angle for improved acceleration and climbing.
Tuned compliance
New frame features a lower seatstay junction with smaller diameter tubes to absorb road shocks and vibrations.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can choose between the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- XS
- 5’1”
5’5”
-
- S
- 5’3” 5’7”
-
- M
- 5’7” 5’11”
-
- ML
- 5’9” 6’1”
-
- L
- 5’10” 6’3”
-
- XL
- 6’2” 6’7”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | SHORT | LONG | ||
| A | SEAT TUBE LENGTH (inch) | 16.9 | 17.7 | 18.5 | 19.3 | 20.1 | 20.9 |
| B | SEAT TUBE ANGLE | 74.0° | 73.5° | 73.5° | 73.0° | 73.0° | 73.0° |
| C | TOP TUBE LENGTH (inch) | 21.3 | 21.7 | 22 | 22.6 | 23 | 23.6 |
| D | HEAD TUBE LENGTH (inch) | 4.9 | 5.3 | 5.9 | 6.5 | 7.1 | 7.7 |
| E | HEAD TUBE ANGLE | 70.0° | 71.0° | 71.5° | 72.0° | 72.0° | 72.0° |
| F | FORK RAKE (inch) | 2 | 2 | 2 | 2 | 2 | 2 |
| G | TRAIL (inch) | 3.1 | 3.2 | 2.8 | 3 | 2.7 | 2.8 | 2.6 | 2.7 | 2.6 | 2.7 | 2.6 | 2.7 |
| H | WHEELBASE (inch) | 40.3 | 40.7 | 40.2 | 40.6 | 40.4 | 40.8 | 40.6 | 41 | 41 | 41.4 | 41.6 | 42 |
| I | CHAIN STAY LENGTH (inch) | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 | 16.7 | 17.1 |
| J | BOTTOM BRACKET DROP (inch) | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 | 3.1 | 3.2 |
| K | STACK (inch) | 21.9 | 22.4 | 23.1 | 23.7 | 24.3 | 24.8 |
| L | REACH (inch) | 15 | 15 | 15.2 | 15.4 | 15.6 | 16 |
| M | STAND OVER HEIGHT (inch) | 28.5 | 28.8 | 29.1 | 29.4 | 29.8 | 30.1 | 30.5 | 30.7 | 31.1 | 31.4 | 31.8 | 32 |
| N | HANDLEBAR WIDTH (inch) | 16.5 | 16.5 | 17.3 | 17.3 | 18.1 | 18.1 |
| O | STEM LENGTH (inch) | 2 | 2.4 | 2.8 | 3.1 | 3.1 | 3.5 |
| P | CRANK LENGTH (inch) | 6.7 | 6.7 | 6.8 | 6.8 | 6.9 | 6.9 |
| Q | WHEEL SIZE | 700C | 700C | 700C | 700C | 700C | 700C |
