THE LATEST GENERATION OF OUR FLAGSHIP ROAD RACING SERIES HAS BEEN WINNING THE BIGGEST RACES IN THE WORLD FOR MORE THAN THREE DECADES. IT’S THE ULTIMATE ALL-ROUNDER FOR THE PERFORMANCE OBSESSED.

KEY PERFORMANCE FACTORS

Class-leading efficiency

With the highest pedaling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.

Specs

Sizes

XS, S, M, M/L, L, XL
Colors

Raw Carbon / Iris / Reflective Silver
Frame

Advanced SL-Grade Composite, integrated seatpost, disc
Fork

Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
Shock

N/A
Handlebar

Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Grips

Stratus Lite 2.0
Stem

Giant Contact SLR XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost

Advanced SL-Grade composite, integrated design, -5/+15mm offset
Saddle

Giant Fleet SLR
Pedals

N/A
Shifters

Shimano Dura-Ace Di2 ST-R9270
Front Derailleur

Shimano Dura-Ace Di2 ST-R9250
Rear Derailleur

Shimano Dura-Ace Di2 ST-R9250
Brakes

Shimano Dura-Ace Di2 hydraulic, Shimano RT-MT900 rotors [F]160mm, [R]140mm
Brake Levers

Shimano Dura-Ace Di2
Cassette

Shimano Dura-Ace, 12-speed, 11×34
Chain

Shimano Dura-Ace M9100
Crankset

Shimano Dura-Ace, 36/52 with FC-9200P power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket

Shimano, press fit
Rims

CADEX 42 Disc WheelSystem
Hubs

CADEX 42 Disc WheelSystem, 12mm thru-axle
Spokes

CADEX 42 Disc WheelSystem
Tires

CADEX Race, tubeless, 700x25c (26.5mm), folding
Extras

computer mount, tubeless prepared, 32mm max tire size
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

HIGHLIGHTS

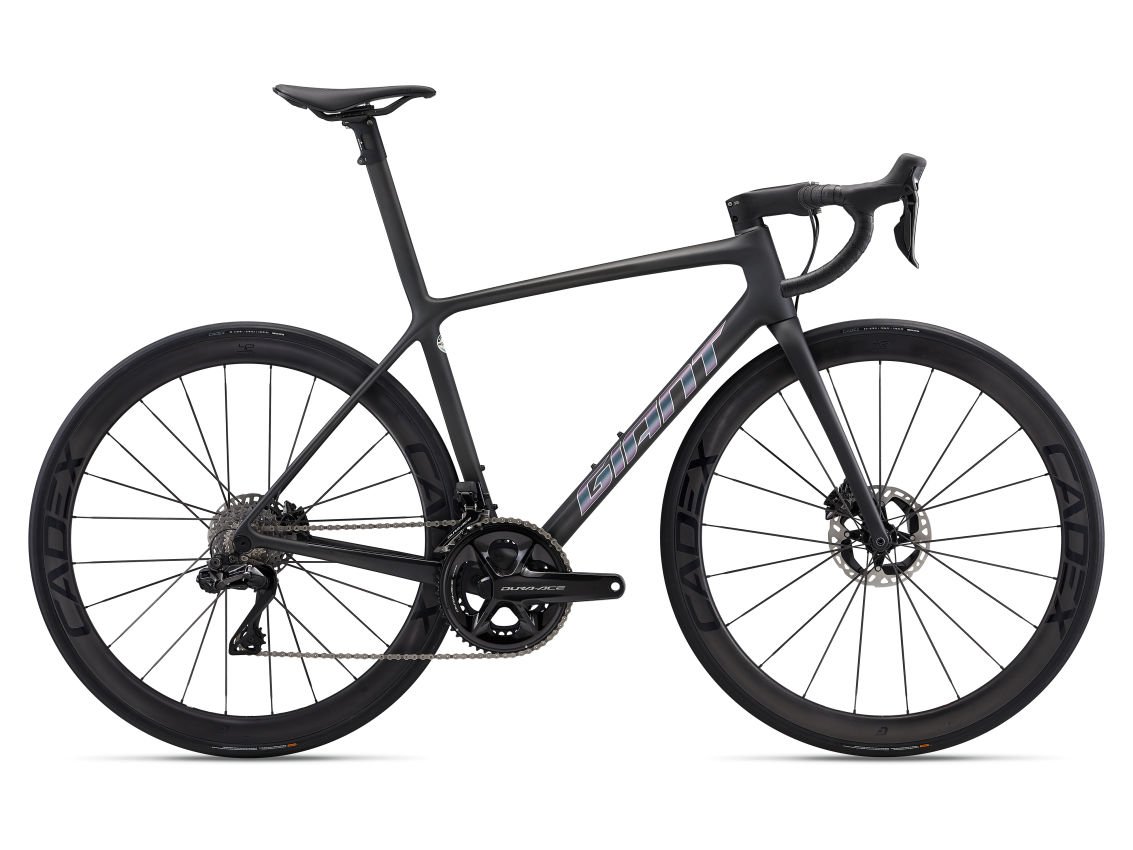

The latest TCR Advanced SL Disc builds on its proven climbing capabilities, boasting its highest stiffness-to-weight ratio ever, and adds aero shaping in key sections of the frameset for added all-rounder performance. Additional updates include added frame and fork clearance to fit high-volume tires up to 32mm, the latest integrated WheelSystem technology, and a new aero-engineered Contact SLR composite handlebar to make it even faster against the wind.
