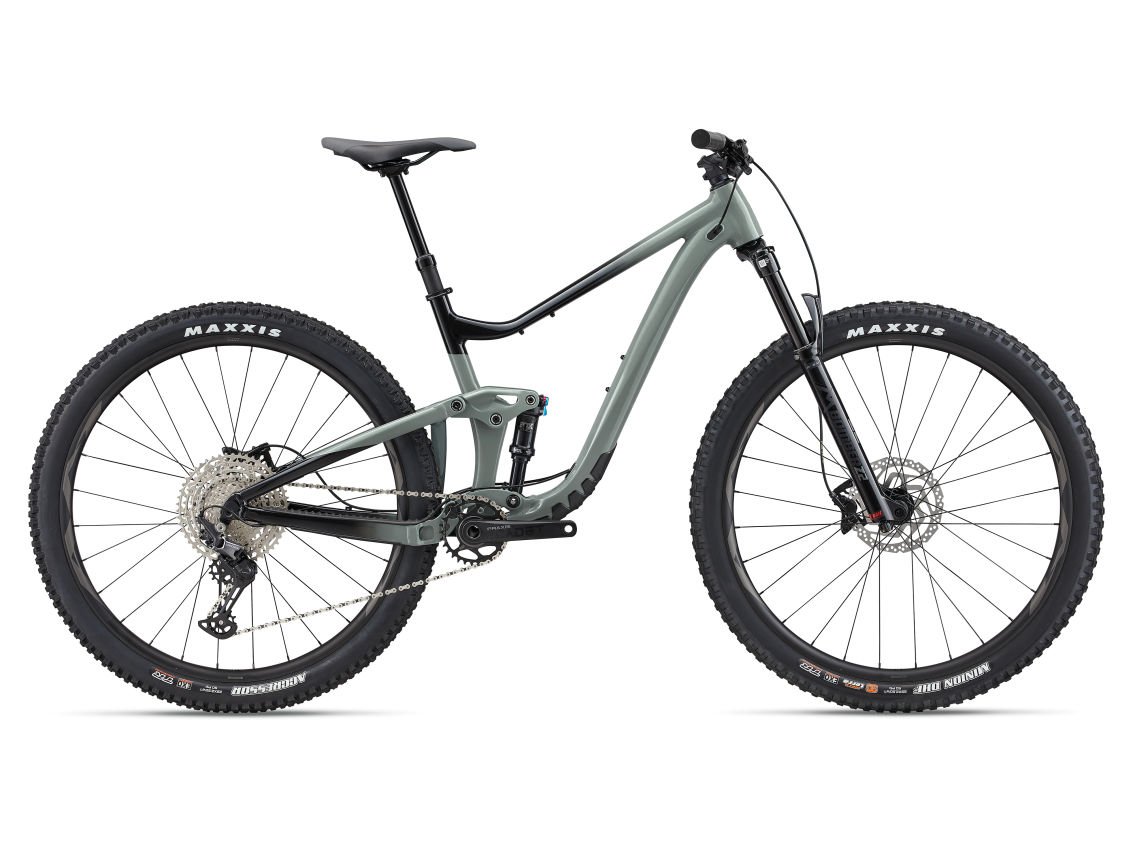

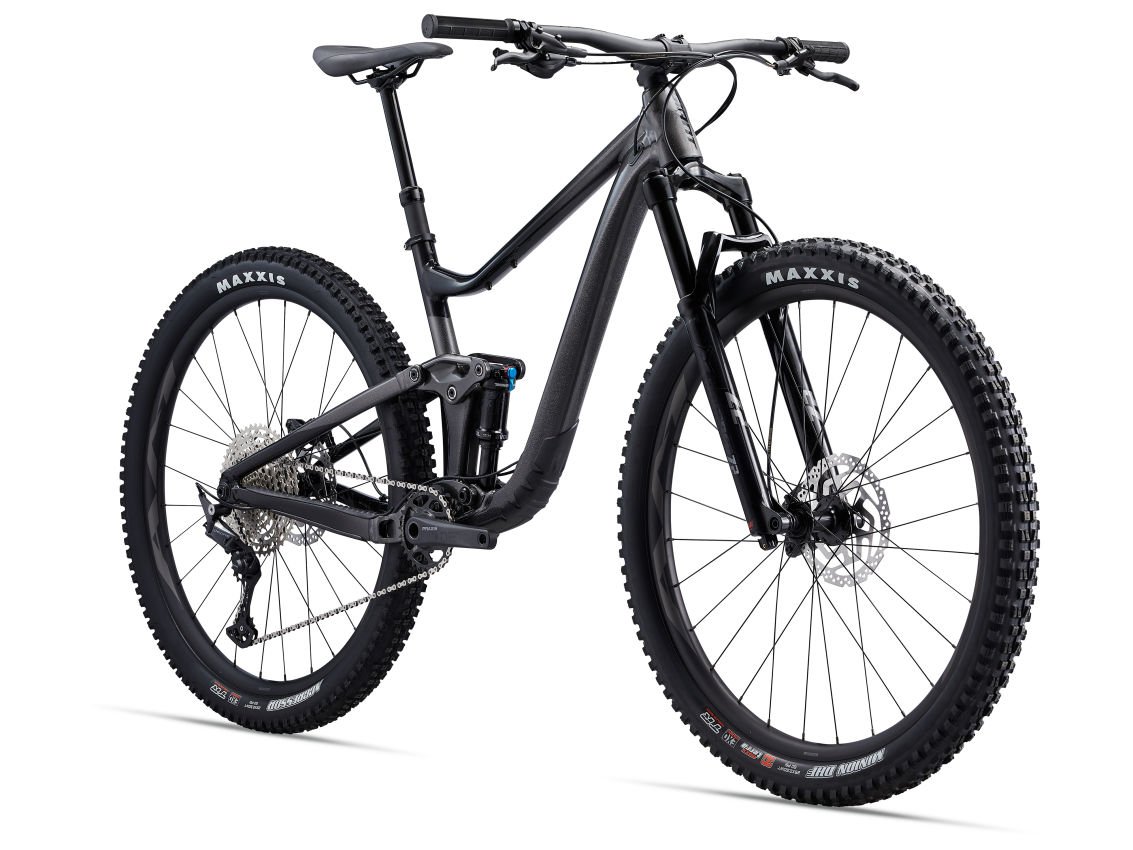

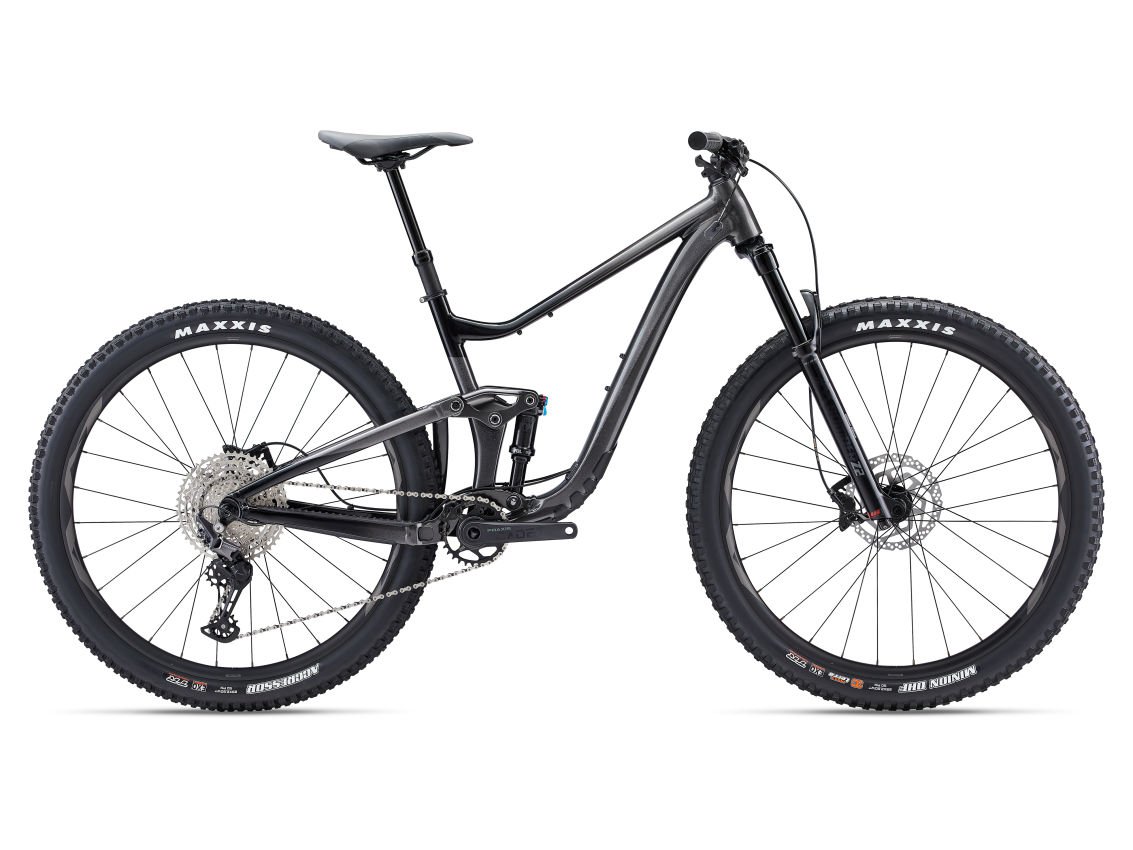

TURN UP THE HEAT ON TECHNICAL TRAILS, AND DO IT WITH MORE CONFIDENCE AND CONTROL. FEATURING UPDATED SUSPENSION AND ADJUSTABLE GEOMETRY, THIS FEISTY 29ER ADAPTS TO THE TERRAIN.
KEY PERFORMANCE FACTORS
Adjustable frame geometry
New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
29er confidence and control
Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.
Progressive trail design
Lightweight ALUXX SL aluminum frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.
HIGHLIGHTS
This versatile trail machine is built on a lightweight, stiff and super-strong ALUXX SL frameset that blends our latest Maestro suspension technology with adjustable frame geometry. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker head tube/seat tube angles and either a 35mm or 45mm bottom bracket drop to fine-tune the handling for your riding style and terrain. It’s designed around a 130mm travel suspension fork, and the overall geometry has been tuned to maximize its performance on rugged trails.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- S
- 5’4”
5’8”
-
- M
- 5’7” 5’11”
-
- L
- 5’10” 6’2”
-
- XL
- 6’2” 6’6”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (inch) | 16.5 | 16.9 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° |
| C | TOP TUBE LENGTH (inch) | 22.1 | 22 | 23.6 | 23.5 | 24.6 | 24.6 | 26.1 | 26 |
| D | HEAD TUBE LENGTH (inch) | 3.9 | 4.3 | 4.7 | 5.1 |
| E | HEAD TUBE ANGLE | 65.4° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 5 | 4.7 | 5 | 4.7 | 5 | 4.7 | 5 | 4.7 |
| H | WHEELBASE (inch) | 45.9 | 45.9 | 47 | 47 | 48.2 | 48.1 | 49.7 | 49.7 |
| I | CHAIN STAY LENGTH (inch) | 17.3 | 17.2 | 17.3 | 17.2 | 17.3 | 17.2 | 17.3 | 17.2 |
| J | BOTTOM BRACKET DROP (inch) | 1.8 | 1.4 | 1.8 | 1.4 | 1.8 | 1.4 | 1.8 | 1.4 |
| K | STACK (inch) | 24 | 23.8 | 24.4 | 24.1 | 24.7 | 24.5 | 25.1 | 24.8 |
| L | REACH (inch) | 16.6 | 17 | 17.6 | 18 | 18.6 | 18.9 | 20 | 20.3 |
| M | STAND OVER HEIGHT (inch) | 28.7 | 29.1 | 28.5 | 28.9 | 29.5 | 29.9 | 30.4 | 30.7 |
| N | HANDLEBAR WIDTH (inch) | 30.7 | 30.7 | 30.7 | 30.7 |
| O | STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 29″ | 29″ | 29″ | 29″ |
