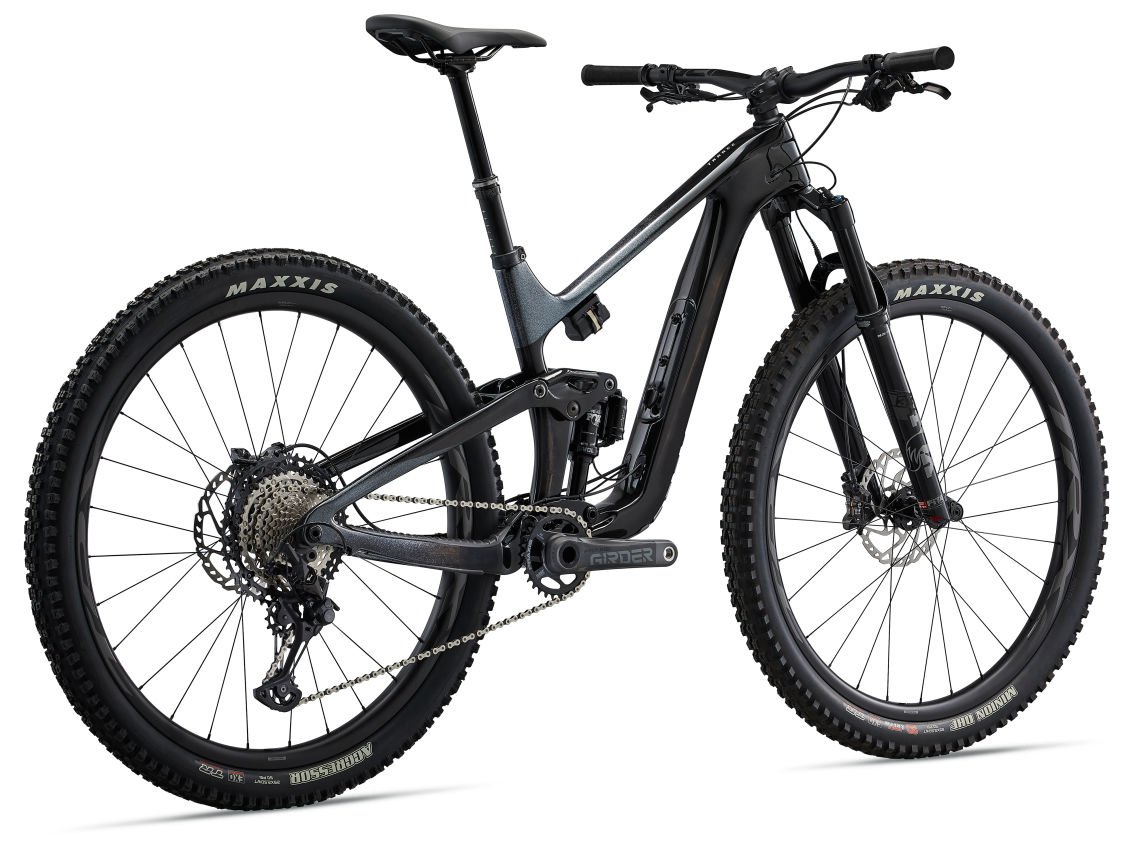

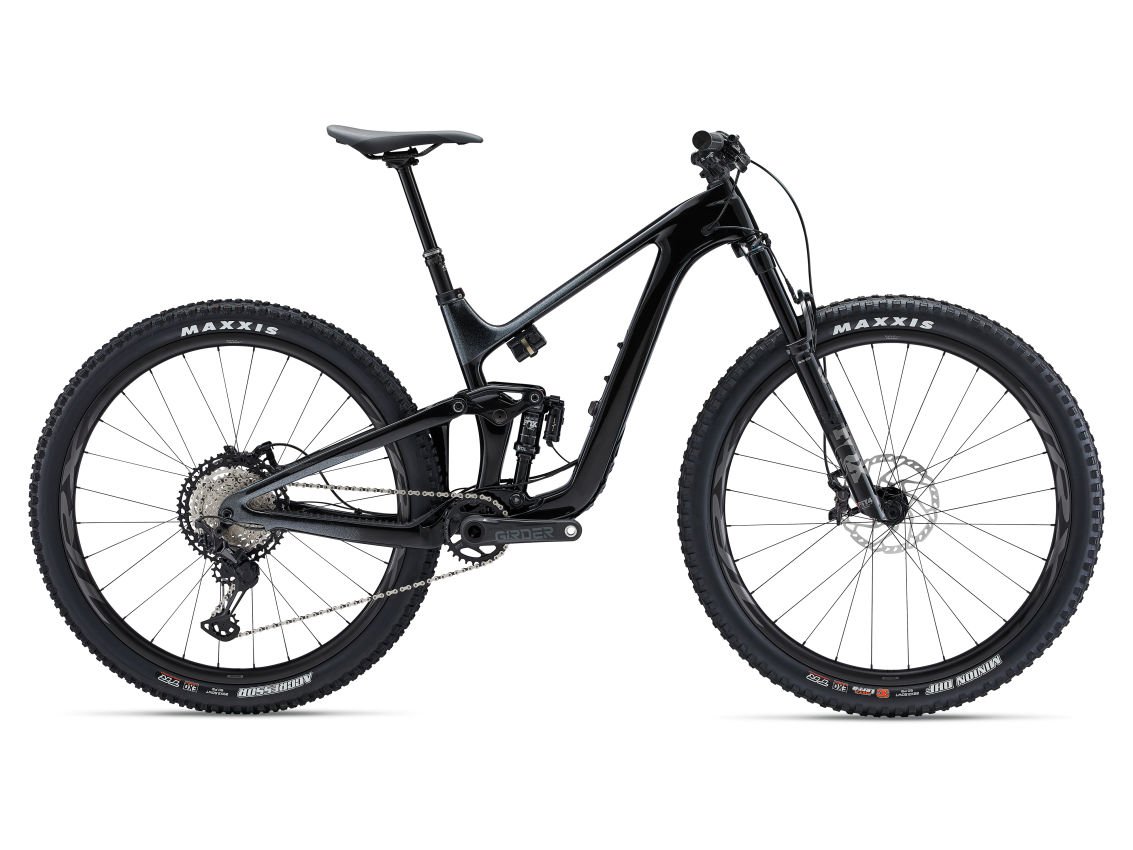

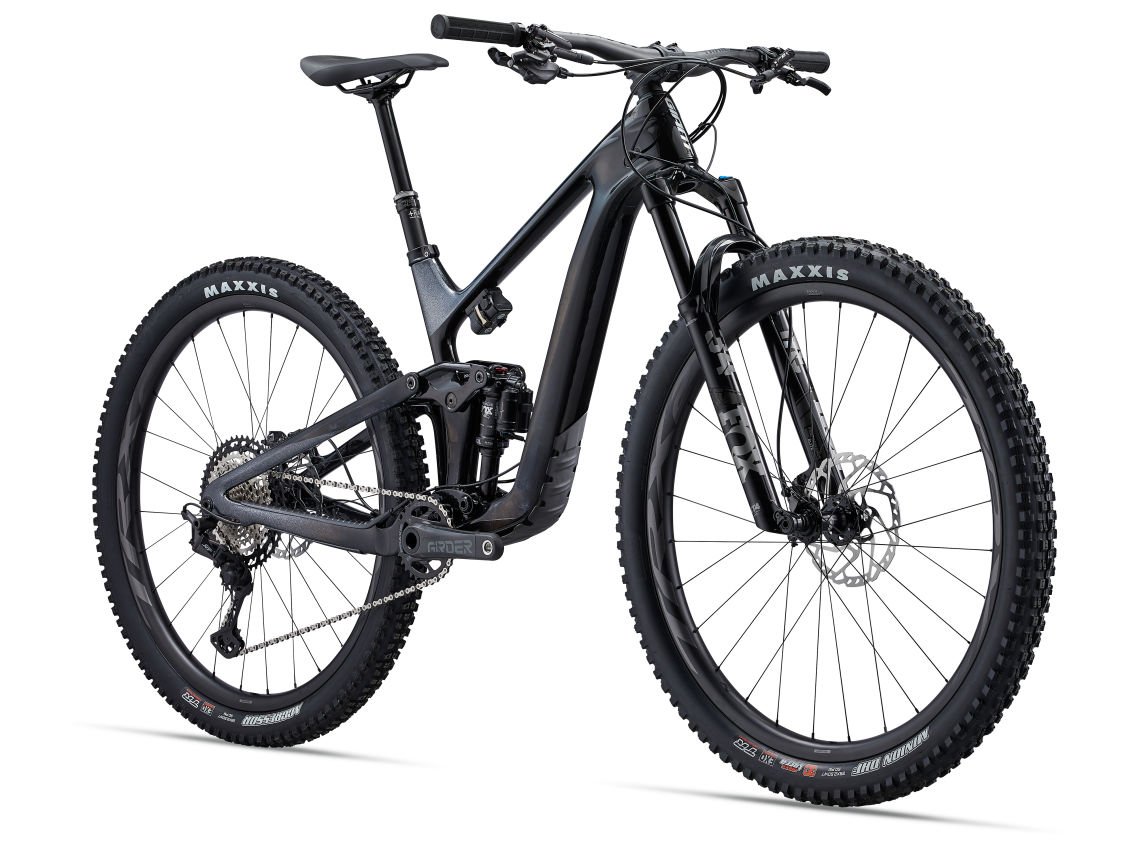

SHRED HARD AND SHRED FAST WITH THIS LIVELY 29ER. IT’S BUILT ON AN ALL-NEW FULL-COMPOSITE FRAME WITH ADJUSTABLE GEOMETRY, GIVING YOU SMOOTH CONTROL TO BLITZ TECHNICAL TRAILS AT SPEED.
KEY PERFORMANCE FACTORS
Adjustable frame geometry
New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
29er confidence and control
Larger 29-inch diameter wheels optimized to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.
Progressive trail design
Lightweight Advanced-grade composite frameset features a longer reach and steeper seat tube for aggressive trail riding and improved climbing capabilities. Updated Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front.
-
SizesS, M, L, XL
-
ColorsCarbon / Black Diamond / Chrome
-
FrameAdvanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip, 12x148mm thru-axle
-
ForkFox 34 Performance Elite Live Valve, 130mm, FIT4 damper, Boost 15×110 Kabolt, 44mm offset, custom tuned for Giant
-
ShockFox Performance Elite Live Valve, 185/50, custom tuned for Giant
-
HandlebarGiant Contact SLR TR35, composite, 780x35mm
-
GripsGiant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
-
StemGiant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
-
SeatpostTranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm
-
SaddleGiant Romero SL
-
PedalsN/A
-
ShiftersShimano Deore XT SL-M8100, 1×12
-
Front DerailleurN/A
-
Rear DerailleurShimano Deore XT RD-M8100
-
BrakesShimano Deore XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]180mm, [R]180mm
-
Brake LeversShimano Deore XT BL-M8100
-
CassetteShimano Deore XT M8100, 10×51
-
ChainKMC X-12
-
CranksetPraxis Girder Carbon, 30t S:165mm, M:170mm, L:170mm, XL:170mm
-
Bottom BracketShimano, press fit
-
RimsGiant TRX 2 Carbon 29 WheelSystem
-
HubsGiant TRX 2 Carbon 29 WheelSystem
-
SpokesGiant TRX 2 Carbon 29 WheelSystem
-
Tires[F] Maxxis Minion DHF 29×2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29×2.5, EXO, TR, tubeless
-
Extrastubeless prepared, 2.6″ max tire size, 34t max chainring size, MRP 1x HD2 CS ISCG-05 chain guide
-
WeightThe most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
-
HIGHLIGHTS
This versatile trail bike features a full composite frame fitted with a new Maestro suspension system that offers 5mm more travel than the previous generation. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker head tube and seat tube angles and either a 35mm or 45mm bottom bracket drop to adjust the handling for your riding style and terrain.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- S
- 5’4”
5’8”
-
- M
- 5’7” 5’11”
-
- L
- 5’10” 6’2”
-
- XL
- 6’2” 6’6”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (inch) | 16.5 | 16.9 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 77.2° | 78.0° | 76.3° | 77.0° | 76.3° | 77.0° | 76.3° | 77.0° |
| C | TOP TUBE LENGTH (inch) | 22.1 | 22 | 23.6 | 23.5 | 24.6 | 24.6 | 26.1 | 26 |
| D | HEAD TUBE LENGTH (inch) | 3.9 | 4.3 | 4.7 | 5.1 |
| E | HEAD TUBE ANGLE | 65.4° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 5 | 4.7 | 5 | 4.7 | 5 | 4.7 | 5 | 4.7 |
| H | WHEELBASE (inch) | 45.9 | 45.9 | 47 | 47 | 48.2 | 48.1 | 49.7 | 49.7 |
| I | CHAIN STAY LENGTH (inch) | 17.3 | 17.2 | 17.3 | 17.2 | 17.3 | 17.2 | 17.3 | 17.2 |
| J | BOTTOM BRACKET DROP (inch) | 1.8 | 1.4 | 1.8 | 1.4 | 1.8 | 1.4 | 1.8 | 1.4 |
| K | STACK (inch) | 24 | 23.8 | 24.4 | 24.1 | 24.7 | 24.5 | 25.1 | 24.8 |
| L | REACH (inch) | 16.6 | 16.9 | 17.6 | 17.9 | 18.6 | 18.9 | 20 | 20.3 |
| M | STAND OVER HEIGHT (inch) | 28.7 | 29 | 28.5 | 28.8 | 29.4 | 29.7 | 29.6 | 29.9 |
| N | HANDLEBAR WIDTH (inch) | 30.7 | 30.7 | 30.7 | 30.7 |
| O | STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 29″ | 29″ | 29″ | 29″ |
