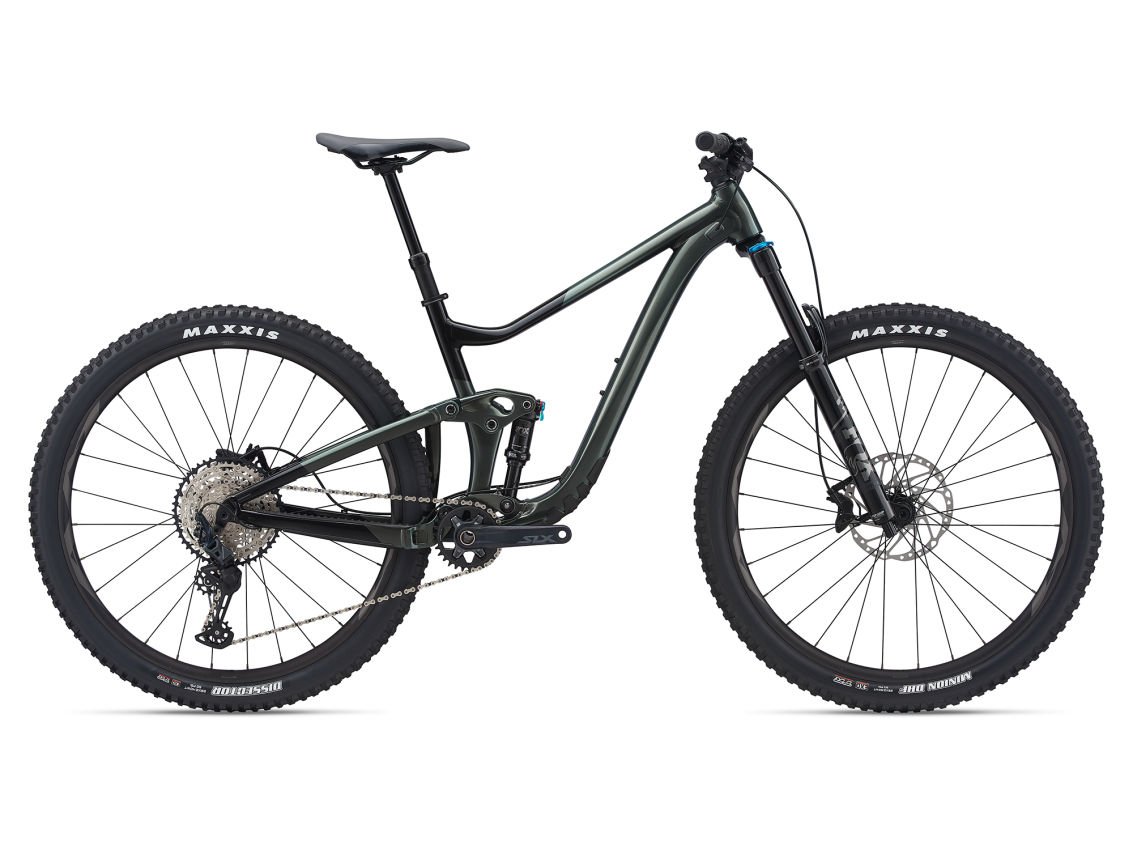

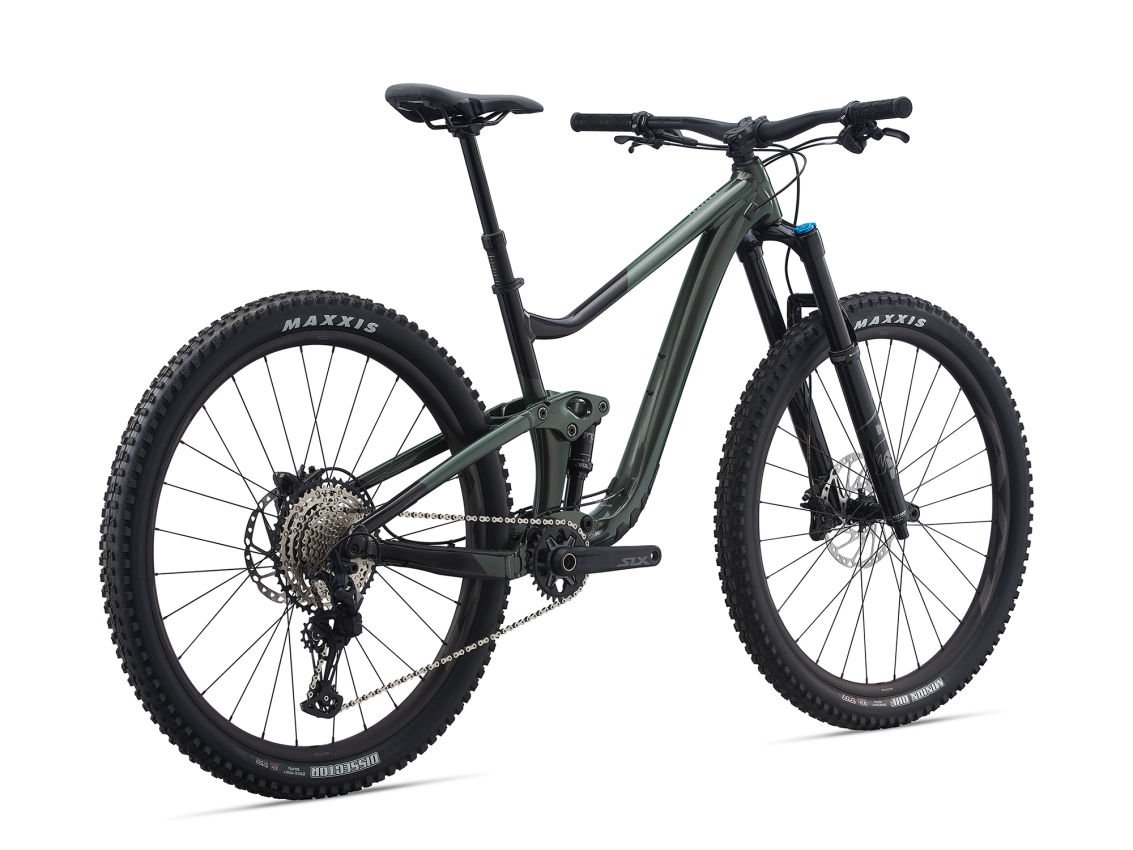

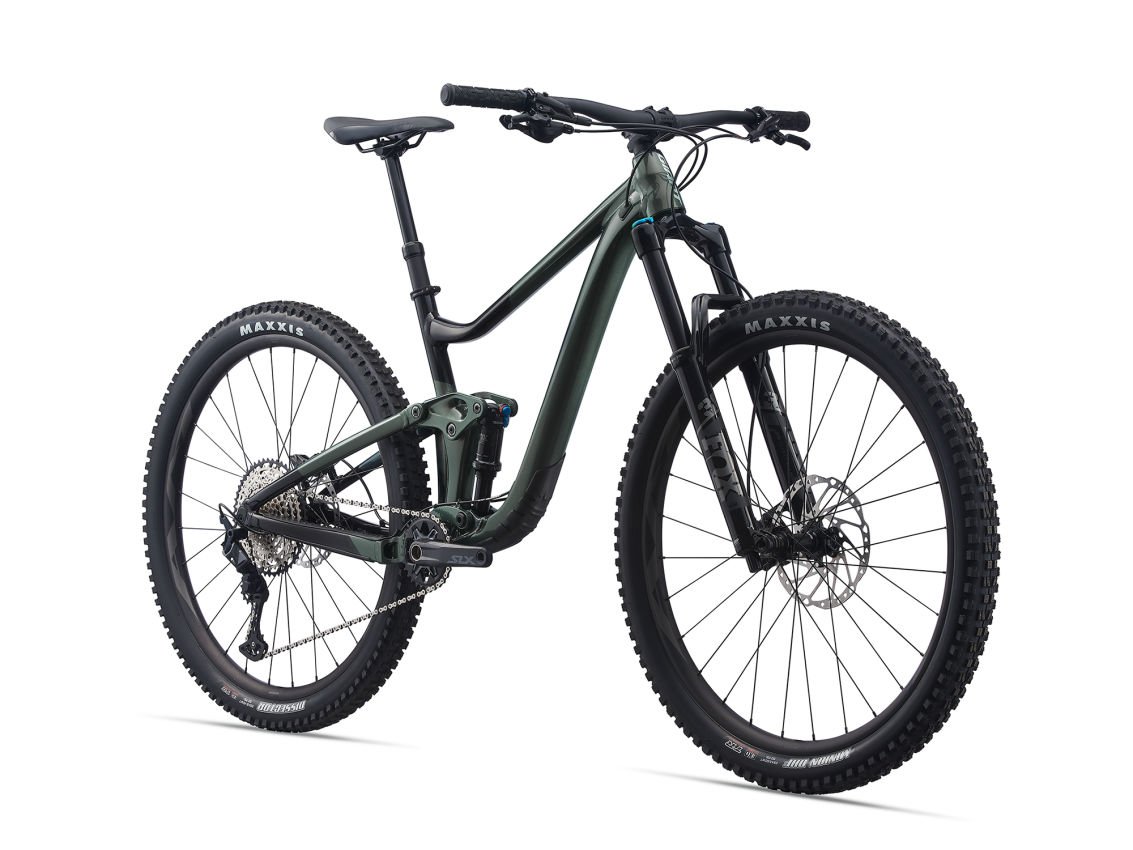

CHUNKY ROCK GARDENS, GNARLY ROOTS AND STEEP, TECHNICAL CLIMBS. THE ALL-NEW TRANCE X 29 IS FOR THOSE WHO CONSIDER THE HARDEST SECTION OF TRAIL THEIR FAVORITE PART OF THE RIDE. WITH LONGER SUSPENSION TRAVEL AND ADJUSTABLE GEOMETRY, THIS ALUMINUM TRAIL SLAYER DELIVERS HARD-CHARGING SINGLETRACK FUN.
Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry and a plush ride thanks to its advanced new suspension setup. Longer travel Maestro suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip-chip that allows you to adjust frame geometry and tailor the bike’s handling to your riding style and terrain. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain. It’s all built around 29-inch wheels and lots of clearance (up to 2.5-inch tires) for maximum control on rugged trails.
KEY PERFORMANCE FACTORS
29er confidence and control
29-inch wheels roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.
Progressive suspension
New Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features a two-position adjustable Advanced Forged Composite flip-chip equipped upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Adjustable frame geometry
Lightweight ALUXX-SL frameset features adjustable geometry that offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles, resulting in 30mm or 40mm bottom bracket drop options for aggressive trail configurations.
HIGHLIGHTS
Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er trail bike gives you smooth suspension performance to gobble up technical terrain. The ALUXX SL aluminum frame is lightweight, stiff and super strong, and adjustable frame geometry lets you dial in its handling for total confidence and control. Here’s a look at the key technologies in the new Trance X 29.
VIDEOS
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- S
- 5’4”
5’8”
-
- M
- 5’7” 5’11”
-
- L
- 5’10” 6’2”
-
- XL
- 6’2” 6’5”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | SEAT TUBE LENGTH (inch) | 16.9 | 16.9 | 18.3 | 19.5 |
| B | SEAT TUBE ANGLE | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° |
| C | TOP TUBE LENGTH (inch) | 22.3 | 22.2 | 23.5 | 23.4 | 24.8 | 24.7 | 25.8 | 25.7 |
| D | HEAD TUBE LENGTH (inch) | 3.7 | 3.9 | 4.3 | 4.7 |
| E | HEAD TUBE ANGLE | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| F | FORK RAKE (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAIL (inch) | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 |
| H | WHEELBASE (inch) | 46.2 | 46.1 | 47.4 | 47.4 | 48.8 | 48.7 | 49.9 | 49.8 |
| I | CHAIN STAY LENGTH (inch) | 17.2 | 17.1 | 17.2 | 17.1 | 17.2 | 17.1 | 17.2 | 17.1 |
| J | BOTTOM BRACKET DROP (inch) | 1.6 | 1.2 | 1.6 | 1.2 | 1.6 | 1.2 | 1.6 | 1.2 |
| K | STACK (inch) | 24.3 | 24.1 | 24.4 | 24.2 | 24.8 | 24.6 | 25.2 | 25 |
| L | REACH (inch) | 16.8 | 17.1 | 18 | 18.3 | 19.1 | 19.4 | 20.1 | 20.4 |
| M | STAND OVER HEIGHT (inch) | 28.9 | 29.3 | 28.7 | 29.1 | 29.7 | 30 | 30.6 | 30.9 |
| N | HANDLEBAR WIDTH (inch) | 31.5 | 31.5 | 31.5 | 31.5 |
| O | STEM LENGTH (inch) | 1.6 | 1.6 | 2 | 2 |
| P | CRANK LENGTH (inch) | 6.5 | 6.7 | 6.7 | 6.7 |
| Q | WHEEL SIZE | 29″ | 29″ | 29″ | 29″ |
