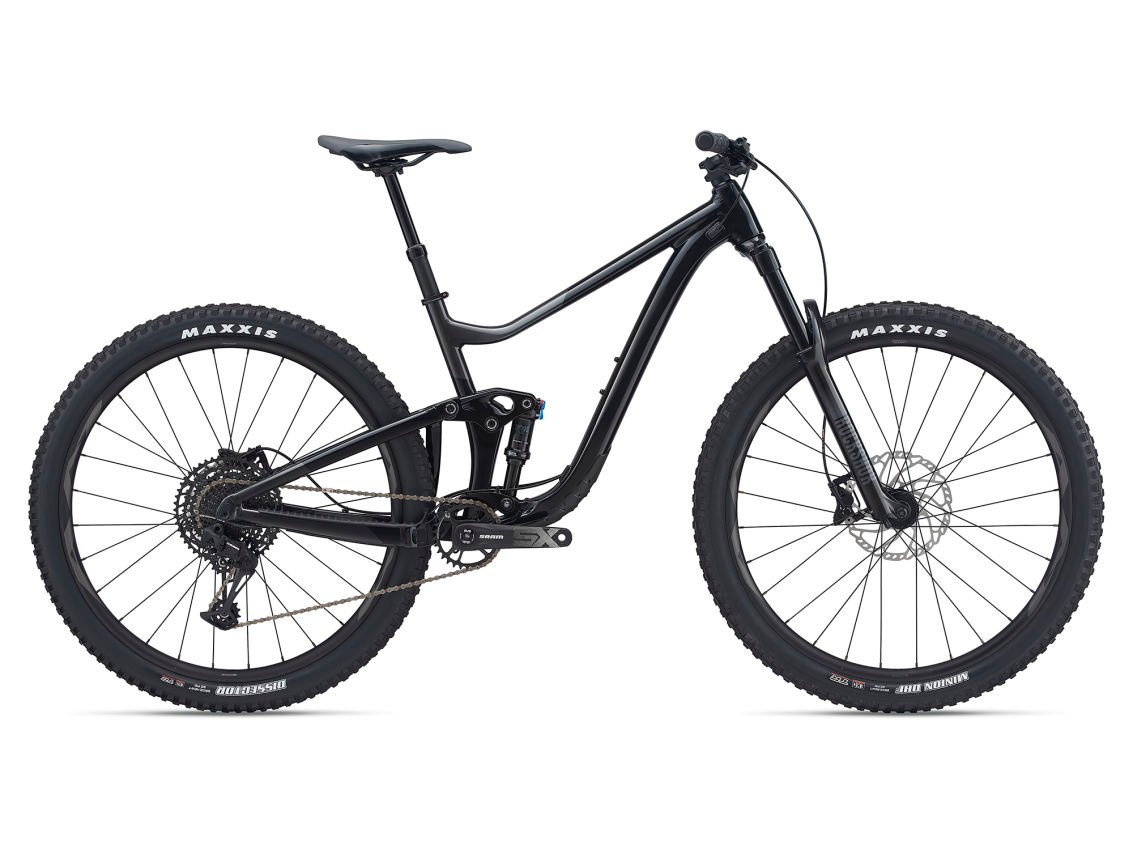

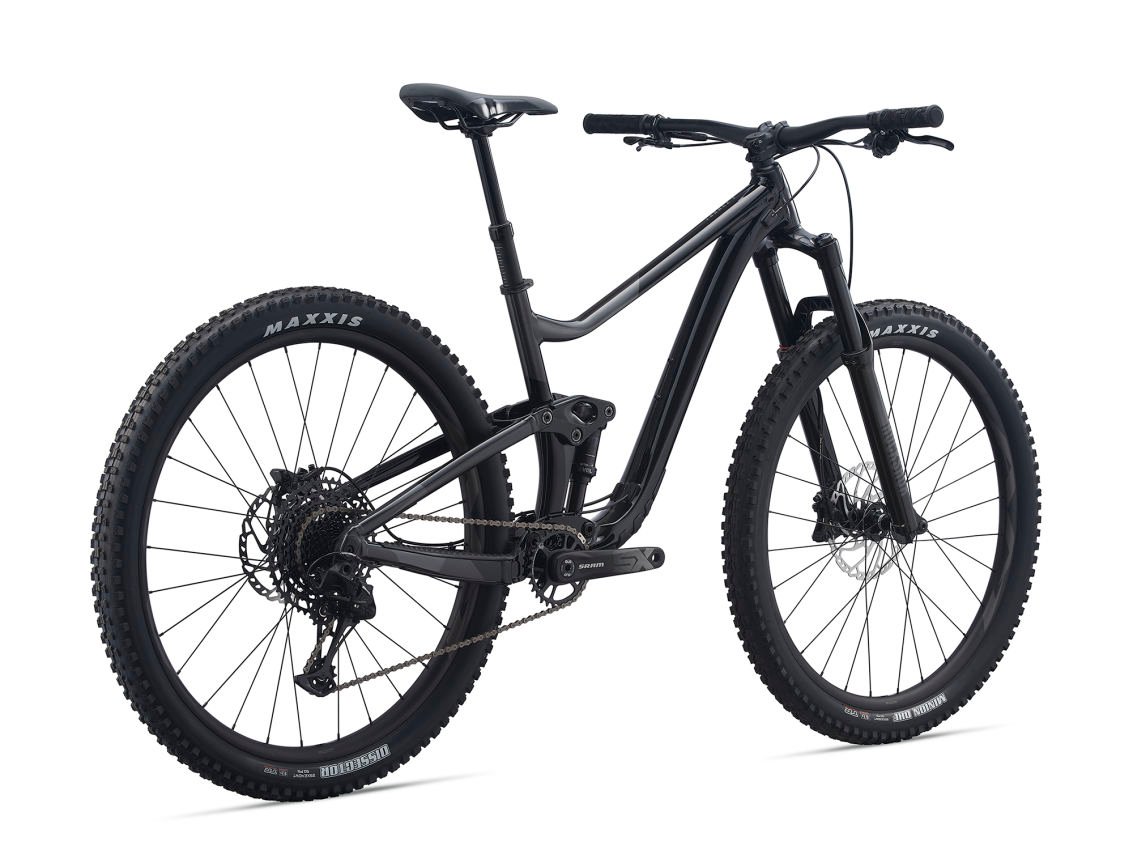

CHUNKY ROCK GARDENS, GNARLY ROOTS AND STEEP, TECHNICAL CLIMBS. THE ALL-NEW TRANCE X 29 IS FOR THOSE WHO CONSIDER THE HARDEST SECTION OF TRAIL THEIR FAVORITE PART OF THE RIDE. WITH LONGER SUSPENSION TRAVEL AND ADJUSTABLE GEOMETRY, THIS ALUMINUM TRAIL SLAYER DELIVERS HARD-CHARGING SINGLETRACK FUN.

Engineered to help you ride faster and smoother on the toughest trails, this all-new 29er has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry and a plush ride thanks to its advanced new suspension setup. Longer travel Maestro suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip-chip that allows you to adjust frame geometry and tailor the bike’s handling to your riding style and terrain. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain. It’s all built around 29-inch wheels and lots of clearance (up to 2.5-inch tires) for maximum control on rugged trails.

KEY PERFORMANCE FACTORS

29er confidence and control

29-inch wheels roll over rough terrain with balance and stability, giving you more momentum for technical climbs and the confidence to fly on fast, rugged singletrack descents. Added clearance for up to 2.5-inch tires.

Progressive suspension

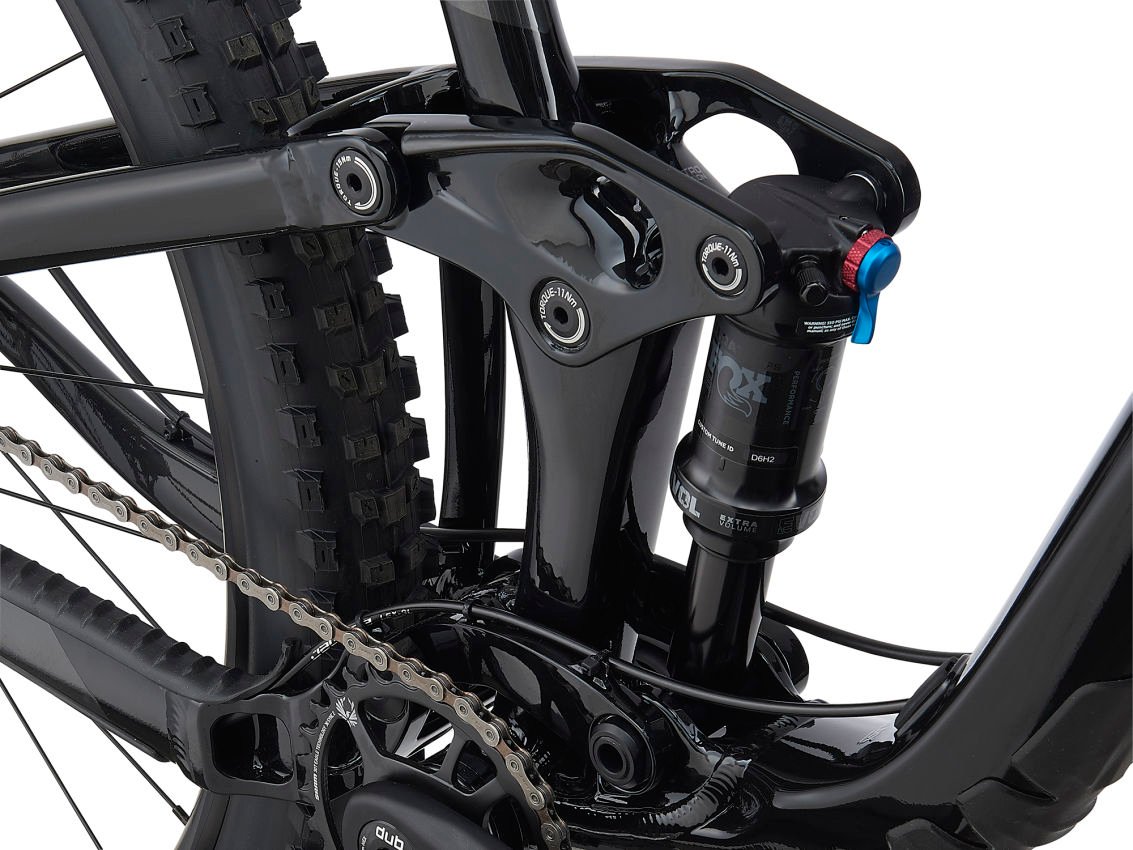

New Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 135mm of full rear-wheel travel (and 150mm up front), it features a two-position adjustable Advanced Forged Composite flip-chip equipped upper rocker arm for increased stiffness and strength plus lower overall frame weight.

Adjustable frame geometry

Lightweight ALUXX-SL frameset features adjustable geometry that offers 66.2 or 65.5-degree headtube and 77.9 or 77.2-degree seattube angles, resulting in 30mm or 40mm bottom bracket drop options for aggressive trail configurations.

Specs

Sizes

S, M, L, XL
Colors

Black/Black Chrome/Chrome
Frame

ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip
Fork

RockShox 35 Gold RL, 150mm, Boost 15×110 Maxle Stealth, 44mm offset, custom tuned for Giant
Shock

Fox Float DPS Performance, 185/55, custom tuned for Giant*
Handlebar

Giant Contact Trail, 35
Stem

Giant Contact SL 35
Seatpost

Giant Contact Switch dropper with remote, 30.9
Saddle

Giant Romero
Pedals

N/A
Shifters

SRAM SX Eagle
Front Derailleur

N/A
Rear Derailleur

SRAM SX Eagle
Brakes

Shimano MT420 hydraulic 4-piston (F:203mm, R:180mm)
Brake Levers

Shimano MT401
Cassette

SRAM SX Eagle, 12-speed, 11×50
Chain

SRAM
Crankset

SRAM SX Eagle, DUB Boost, 30t
Bottom Bracket

SRAM DUB, press fit
Rims

Giant AM 29 wheelset, alloy, 30mm inner
Hubs

Giant Performance Tracker, [F] Boost 15x110mm [R] Boost 12x148mm, sealed bearing
Spokes

Sapim
Tires

[F] Maxxis Minion DHF, tubeless, 29×2.5, WT, EXO, TR [R] Maxxis Dissector, tubeless, 29×2.4, WT, EXO, TR
Extras

Tubeless prepared
Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
