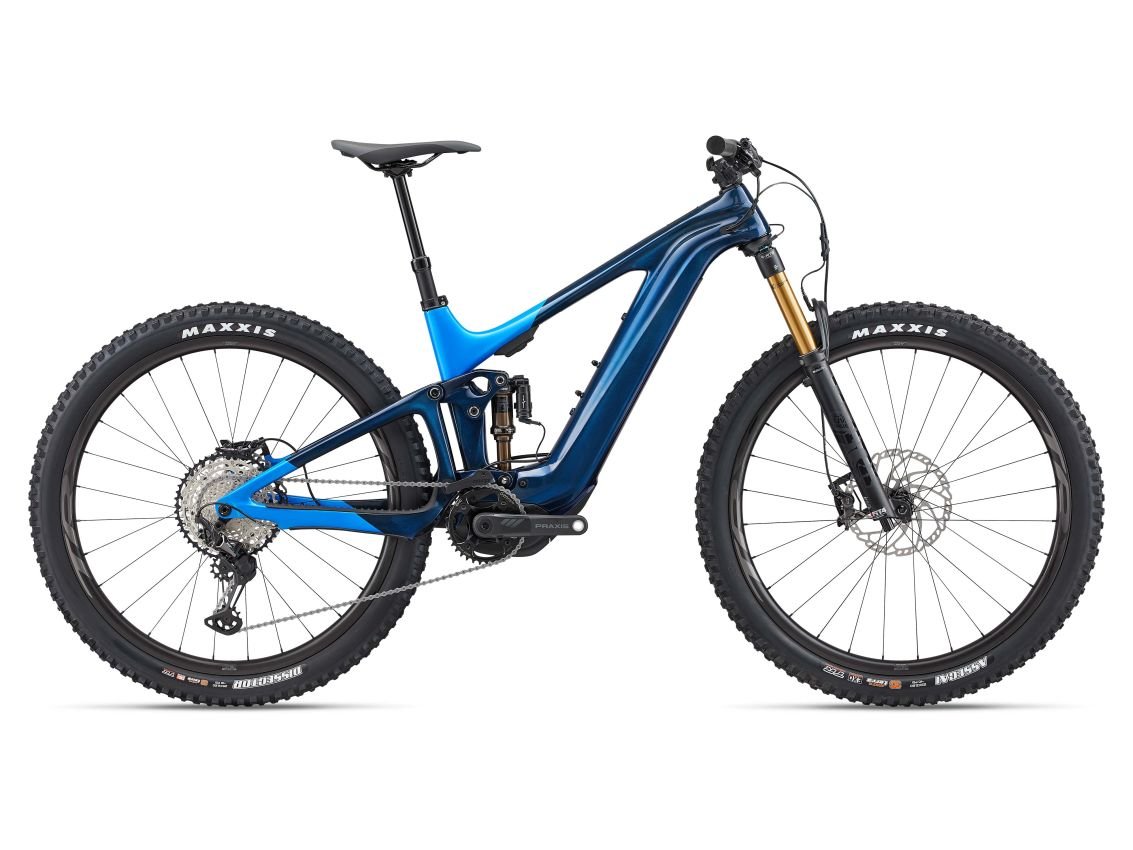

A NEW BREED OF TRAIL BIKE THAT BLENDS POWER, PERFORMANCE AND FLAT-OUT FUN. WITH ITS LIGHTWEIGHT COMPOSITE FRAME, PLUSH SUSPENSION AND NEW MOTOR TECHNOLOGY, YOU’LL NEVER WANT THE RIDE TO END.
KEY PERFORMANCE FACTORS
Powerful and responsive

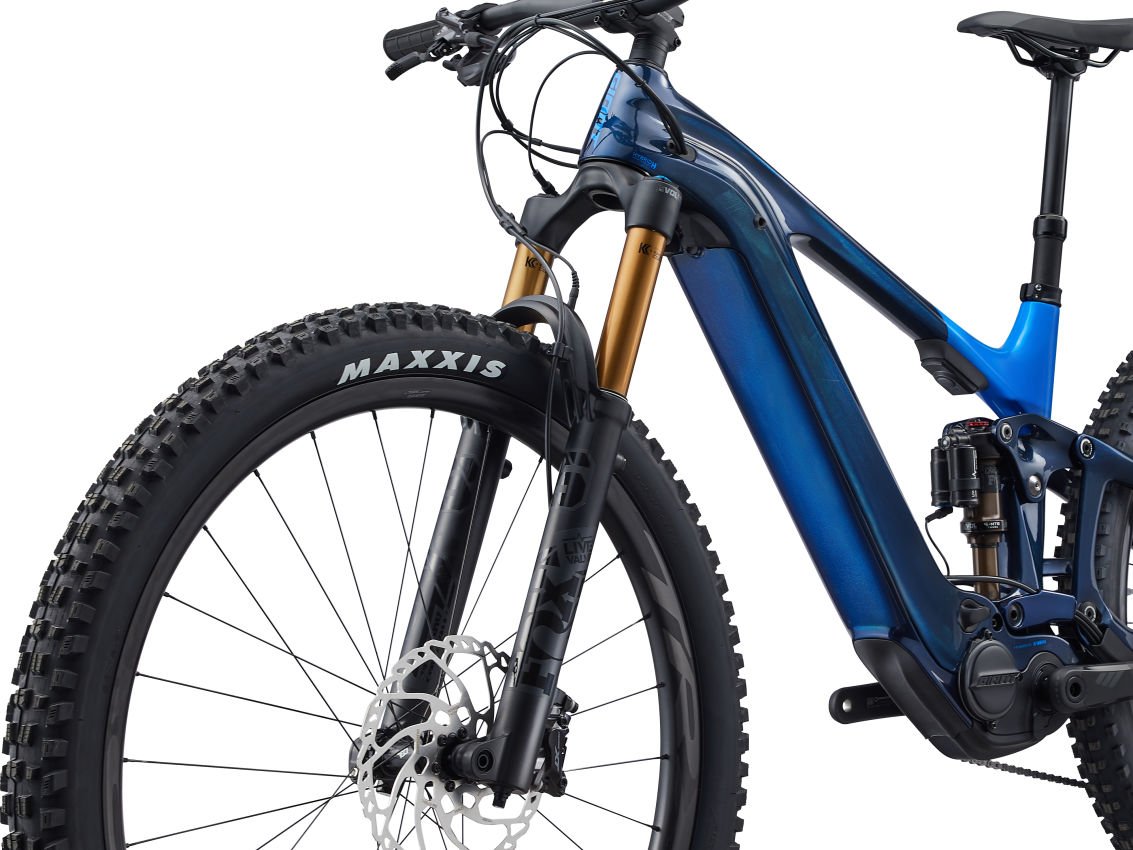

New SyncDrive Pro motor with 85Nm of torque creates powerful pedaling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
Adaptable to the terrain
New flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.

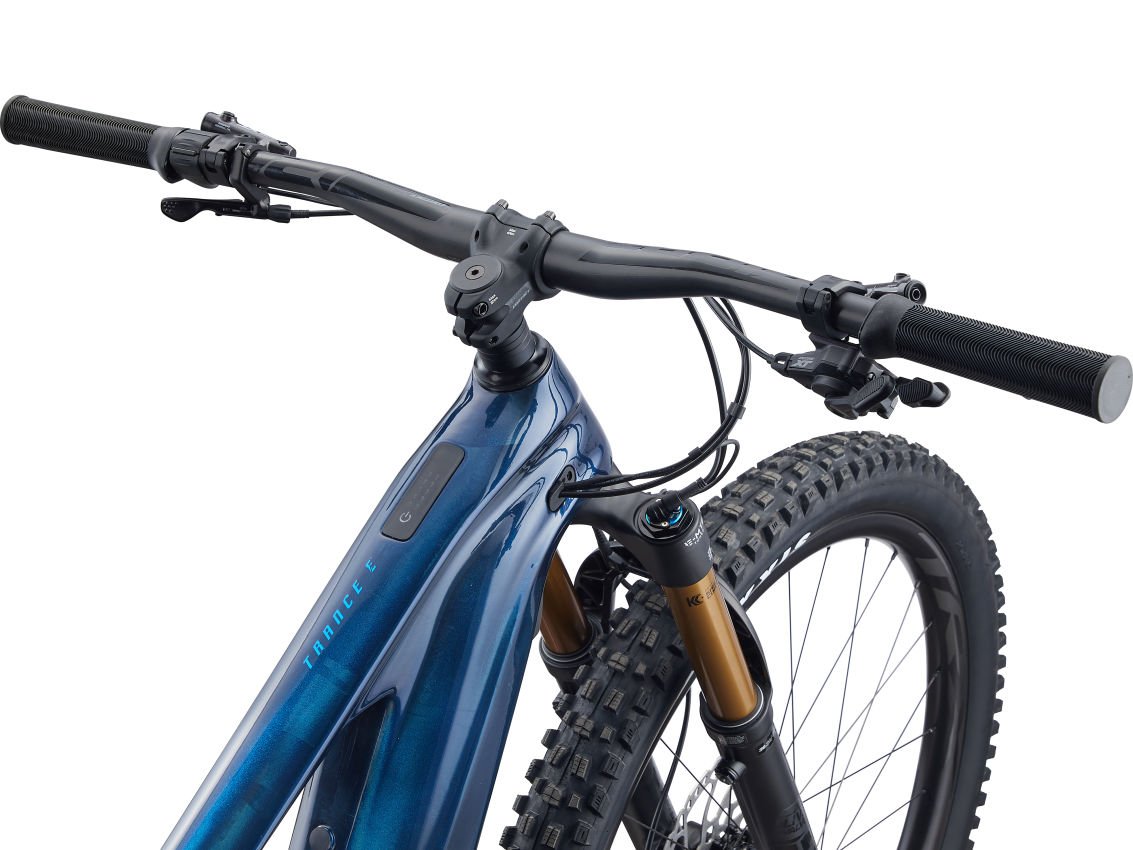

Clean cockpit
The new RideControl Go top-tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK SMART 625 / SYNCDRIVE PRO
HIGHLIGHTS
A new SyncDrive Pro motor delivers 85Nm of torque, so you have the freedom to ride trails the way you want to. The composite frameset features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust frame geometry. A RideControl Go button on the top tube offers easy on/off and switching between power modes. In addition, the RideControl Ergo 3 controller can be mounted on the left or right side of the handlebar.
SIZING GUIDE AND GEOMETRY
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| S | M | L | XL | ||
|---|---|---|---|---|---|
| LOWÂ |Â HIGH | LOWÂ |Â HIGH | LOWÂ |Â HIGH | LOWÂ |Â HIGH | ||
| A | SEAT TUBE LENGTHÂ (inch) | 15.7 | 16.7 | 17.7 | 18.7 |
| B | SEAT TUBE ANGLE | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| C | TOP TUBE LENGTHÂ (inch) | 22.7Â |Â 22.6 | 23.9Â |Â 23.8 | 25.1Â |Â 25 | 26.3Â |Â 26.2 |
| D | HEAD TUBE LENGTHÂ (inch) | 3.7 | 3.9 | 4.3 | 4.7 |
| E | HEAD TUBE ANGLE | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| F | FORK RAKEÂ (inch) | 1.7 | 1.7 | 1.7 | 1.7 |
| G | TRAILÂ (inch) | 4.6Â |Â 4.8 | 4.6Â |Â 4.8 | 4.6Â |Â 4.8 | 4.6Â |Â 4.8 |
| H | WHEELBASEÂ (inch) | 48Â |Â 48.1 | 48.8Â |Â 48.7 | 49.9Â |Â 50 | 51.2Â |Â 51.2 |
| I | CHAIN STAY LENGTHÂ (inch) | 18.6Â |Â 18.6 | 18.6Â |Â 18.6 | 18.6Â |Â 18.6 | 18.6Â |Â 18.6 |
| J | BOTTOM BRACKET DROPÂ (inch) | 1.2Â |Â 0.8 | 1.2Â |Â 0.8 | 1.2Â |Â 0.8 | 1.2Â |Â 0.8 |
| K | STACKÂ (inch) | 23.9Â |Â 23.7 | 24.1Â |Â 23.8 | 24.4Â |Â 24.2 | 24.8Â |Â 24.6 |
| L | REACHÂ (inch) | 17.3Â |Â 17.6 | 18Â |Â 18.2 | 19Â |Â 19.3 | 20.1Â |Â 20.4 |
| M | STAND OVER HEIGHTÂ (inch) | 29.1Â |Â 29.4 | 28.6Â |Â 28.9 | 28.3Â |Â 28.6 | 28.1Â |Â 28.5 |
| N | HANDLEBAR WIDTHÂ (inch) | 30.7 | 30.7 | 30.7 | 30.7 |
| O | STEM LENGTHÂ (inch) | 1.6 | 1.6 | 2 | 2 |
| P | CRANK LENGTHÂ (inch) | 6.3 | 6.5 | 6.5 | 6.7 |
| Q | WHEEL SIZE | 29″ | 29″ | 29″ | 29″ |
